Perceptual audio coding

A loud sound hides quieter sounds close to it in frequency, so a coder need not send them. Watch the quieter tone below slide down beside a loud one: once it falls under the shaded curve, it is masked.

A loud tone hides its neighbours

Sixteen-bit sound at 16 kHz takes 256 kbit/s. The coder on this page sends the same sound in about 38 kbit/s, by using one fact about hearing.

A loud sound hides quieter sounds close to it in frequency. A perceptual coder uses this. It spends bits only on what a listener can hear, and none on what is hidden. MP3 and AAC work this way.

Every signal on this page is synthetic: tones and noise levels set by formula, with no recordings. The levels are model levels. When you press a button to hear a tone, your own volume sets how loud it really is.

Levels in dB SPL

A sound is a small, fast change in air pressure. Its level is given in dB SPL, decibels of sound pressure level, against a reference pressure of 20 µPa:

Pressure is an amplitude, so the factor is 20, as in “Signal and noise, in decibels” of How big is a signal (1.3). A tone’s level in dB SPL is written $L_\text{SPL}$.

Critical bands and the Bark scale

The inner ear sorts sound by frequency, a little like a bank of band-pass filters. Each of these filters is called a critical band. Their widths are not equal in hertz: about 100 Hz wide at low frequencies, and wider and wider above about 500 Hz.

So hearing needs its own frequency scale, the Bark scale, on which every critical band is 1 Bark wide. I use Zwicker’s formula for the critical-band number:

with $f$ in hertz. I write $z_\text{Bark}$ with its subscript, because a bare $z$ is the z-transform variable. From 0 to 20 kHz the scale runs from 0 to 24.6 Bark, so hearing has about 25 critical bands.

At 1 kHz:

The threshold in quiet

The quietest tone a listener can hear depends on its frequency. That level is the threshold in quiet, $L_\text{ATH}(f)$. I use Terhardt’s fit, in dB SPL:

It is 23.0 dB SPL at 100 Hz and 3.4 dB SPL at 1 kHz. Its lowest point is −5.0 dB SPL near 3.3 kHz, where hearing is most sensitive. Above that it climbs again.

Masking

Now play a loud tone, the masker. It raises the threshold of hearing around its own frequency. A quieter tone nearby that falls under the raised threshold is not heard. This is masking.

How far the threshold rises follows a spreading function, measured in Bark from the masker. Let $\Delta z_\text{Bark}=z_\text{Bark}(f)-z_\text{Bark}(f_\text{m})$ be the distance in Bark from the masker’s frequency $f_\text{m}$. To keep the formula short, I write $a=\Delta z_\text{Bark}+0.474$. Then Schroeder’s spreading function is

in dB. $S$ here has no subscript; it is not a power spectral density. At the masker, $S(0)=0.00$ dB.

A masker of level $L_\text{SPL}$ at $f_\text{m}$ then sets a threshold at frequency $f$ of

The last term is Johnston’s offset for a tone masker. It puts the threshold’s peak under the masker’s level by 14.5 dB plus the masker’s Bark number. The masked threshold $L_\text{mask}(f)$ combines this with the threshold in quiet. I turn each of the two levels into a power, add the powers, and go back to dB. Where one is far above the other, the sum is that one to a fraction of a dB.

For a 1 kHz masker at 70 dB SPL, the offset is $14.5+8.51=23.0$ dB. So the threshold peaks at $70-23.0=47.0$ dB SPL.

The curve is lopsided. Between 2 and 3 Bark from the masker it falls 23.1 dB per Bark going down in frequency, but only 9.1 dB per Bark going up. So, in this model, a masker hides more above its frequency than below it.

For the 1 kHz masker, the masked threshold is 43.6 dB SPL at 900 Hz and 45.1 dB SPL at 1100 Hz. Further up it is 41.3 at 1200 Hz, 28.5 at 1500 Hz and 10.8 at 2000 Hz. The masker’s threshold and the threshold in quiet are equal at 637 Hz and at 2467 Hz. Outside those two frequencies the threshold in quiet is the larger, and the masked threshold soon follows it.

This is one model among several. Real thresholds vary from listener to listener, and real coders use more careful models. But every number here can be recomputed from the four formulas, which is why I use it.

The masker and a probe

The picture at the top of the page puts a 1 kHz masker at 70 dB SPL beside a quieter tone at 1200 Hz, the probe. Watch the probe’s margin, its level minus the masked threshold at 1200 Hz, 41.3 dB SPL. At 60 dB SPL the probe stands 18.7 dB above it and at 45 dB only 3.7 dB; at 35 dB it is 6.3 dB under, and masked.

Press “Hear it” to listen for yourself. Whether you hear the probe vanish depends on your ears, your headphones and your volume. The page’s verdict, audible or masked, is the model’s.

What a coder takes from this

Below 41.3 dB SPL, by this model, the probe could be left out of the sound altogether. A coder can do better than drop whole tones, though. Any error it makes, such as rounding noise, is also hidden as long as it stays under the masked threshold.

This is the hearing version of “A weak tone beside a strong one” in Windowing & spectral leakage (15.1). There, a strong tone’s leakage could bury a weak tone in the spectrum. Here, the ear does the burying.

Bits only where the sound shows

A coder works on short frames of sound. For each frame it needs the levels in each band, a masked threshold for each band, and a rule that turns the two into bits.

One frame, 21 bands

I take one frame of 32 ms at a sampling rate of 16 kHz: 512 samples. A transform called the MDCT, which I come back to after the instrument, turns it into 256 coefficients. Coefficient $k$ stands for the frequency $(k+\tfrac12)\times31.25$ Hz.

Frames overlap by half, so each frame brings 256 new samples, 16 ms of sound. Sent as plain 16-bit samples, those would take $16\times256=4096$ bits.

I group the coefficients into one-Bark bands. Band 0 runs from 0 to 1 Bark, band 1 from 1 to 2 Bark, and so on up to band 20, which ends at 21 Bark, 7617 Hz. A coefficient belongs to the band its frequency falls in.

The low bands are narrow in hertz, so they hold few coefficients: 3 in band 0, 5 in band 8. The high ones are wide: 39 in band 20. The 12 coefficients above 7617 Hz fall in no band, and get no bits here.

The sound in the frame

The frame holds two tones: 1 kHz at 70 dB SPL and 3.2 kHz at 52 dB SPL. Under them is a quiet noise floor, 20.5 dB SPL in every band.

The 1 kHz tone lies in band 8, from 922 to 1079 Hz. The 3.2 kHz tone lies in band 15, from 2711 to 3212 Hz, near its top edge. To add a tone to the noise in its band I add their powers, then go back to dB. Both tone bands come out at the tone’s level to one decimal, 70.0 and 52.0 dB SPL.

A mask for each band

Each band’s mask is computed at one frequency, its centre in hertz: halfway between its two edges. Three thresholds count there: the threshold in quiet, the 1 kHz tone’s spread threshold, and the 3.2 kHz tone’s.

I combine the three as in the first instrument: add their powers, then go back to dB.

The masks run from 2.8 dB SPL, in band 19, to 47.0 dB SPL, in band 8 around the loud tone.

Noise under the mask

How far a band’s level stands above its mask is its signal-to-mask ratio, $L_\text{SPL}-L_\text{mask}$ in dB, now with both levels the band’s.

“Each bit is worth 6 dB” in Quantization & noise (11.1) showed that each bit pushes rounding noise down by 6.02 dB. If I round every coefficient in the band with $B$ bits, its noise sits about $6.02\,B$ dB under the band’s level.

The noise is hidden when $6.02\,B$ is at least the signal-to-mask ratio. So the fewest bits that do the job are

where $\lceil\cdot\rceil$ rounds up to a whole number. A band under its mask gets $B=0$: nothing is sent for it. Choosing $B$ band by band like this is bit allocation.

It is the move of “Smooth blocks need few numbers” in Image compression (28.4): round transform coefficients as coarsely as the eye or ear allows.

The bit chart

Watch the bits grow band by band. Both tones get bits, and so do most bands of the quiet noise; the five bands under their masks get none.

Reading the chart

The 3.2 kHz band gets the most bits. Its level, 52.0 dB SPL, stands 32.0 dB over its mask of 20.0 dB SPL. That needs 6 bits per coefficient, since 5 bits cover only 30.1 dB.

The loud 1 kHz tone gets only 4. It is louder, but it also raises its own mask more, to 47.0 dB SPL.

From band 0 to band 20, the bits per coefficient are 0, 1, 2, 3, 3, 3, 1, 0, 4, 0, 0, 0, 1, 3, 3, 6, 1, 2, 3, 3, 3. Bands 0, 7, 9, 10 and 11 are under their masks and cost nothing. Bands 7, 9, 10 and 11 sit near the loud tone; band 0 is under the high threshold in quiet at low frequencies.

The total is the sum over the bands of coefficients times bits: 605 bits, against 4096 for plain 16-bit samples, 6.8 times fewer. Most of it does not go to the tones. The two tone bands take 116 bits; the four highest bands of noise floor take 342, because they hold the most coefficients.

The 605 bits count only the coefficients. A real coder also sends, for every band, its bits per coefficient and a scale, and then shrinks everything with Huffman codes. So this is the allocation step, not a full coder.

The MDCT behind the bands

The MDCT, the modified discrete cosine transform, appeared in “One prototype, eight channels, a perfect sum” of Filter banks (23.1). Frames of $2M$ samples hop by $M$, and each frame gives $M$ coefficients. In 23.1 that count was $N$; here it is $M$, the channel count of a critically sampled bank. On this page $M=256$.

For one frame $x[n]$, $n=0,\dots,2M-1$,

for $k=0,\dots,M-1$, with the sine window

The halves in $n+\tfrac12$ and $k+\tfrac12$ put the cosines’ mirror points between samples, as in “What the mirror does to the DFT” of The discrete cosine transform (13.6).

To go back, each frame computes

for $n=0,\dots,2M-1$, and the frames are overlap-added, $M$ samples apart.

$M$ numbers cannot hold $2M$ samples. So one frame’s $y[n]$ is its windowed samples plus a mirrored copy of them, an alias in time. In the first half of the frame the copy is subtracted; in the second half it is added.

Where two frames overlap, the earlier frame’s second half adds its copy, and the later frame’s first half subtracts the same copy. They cancel: time-domain alias cancellation. The sine window also passes the samples through whole, since $w[n]^2+w[n+M]^2=\sin^2+\cos^2=1$.

So overlap-add gives the signal back exactly. On 192 ms of the page’s two tones, with $M=256$, the largest error is below $10^{-12}$ (rounding).

MP3 puts an MDCT after a 32-band filter bank. AAC uses the MDCT alone, with 1024 coefficients per frame, or 128 for short frames.

I left out a good deal. Masking also works in time, just before and after a loud sound. A sudden attack can smear quantisation noise in front of it, called pre-echo, which is why coders switch to short frames there. I also left out stereo coding and the Huffman tables.

Worked example

1. Hertz to Bark. At 1000 Hz, $0.00076\times1000=0.76$ and $(1000/7500)^2=0.0178$. Then $13\arctan(0.76)+3.5\arctan(0.0178)=8.448+0.062=8.51$ Bark.

2. The threshold at the probe. At 1200 Hz, $z_\text{Bark}=9.70$, so $\Delta z_\text{Bark}=9.70-8.51=1.19$. The spreading function gives $S(1.19)=-5.69$ dB, with $a=1.191+0.474=1.665$. The masker’s threshold is $70-5.69-23.01=41.30$ dB SPL. The threshold in quiet there is 2.7 dB SPL, 38.6 dB lower, so the power sum is still 41.3 dB SPL.

3. Bits for a band. The 3.2 kHz band stands 32.0 dB over its mask. Then $32.0/6.02=5.32$, which rounds up to 6 bits per coefficient. Its 16 coefficients take $16\times6=96$ bits.

4. The saving. The frame needs 605 bits for 256 new samples. Plain 16-bit samples need $16\times256=4096$, and $4096/605=6.77$, so 6.8 times fewer.

Where you’ll meet this

MP3 and AAC, in music files, streaming and broadcast, both shape their noise with a masking model and an MDCT, as on this page. Dolby Digital, in film and television sound, uses an MDCT too. So does Opus, the codec of many voice and video calls, in its music mode.

Bluetooth headphones code sound too. Their basic codec, SBC, splits it into 4 or 8 bands with a filter bank and allots bits band by band. Many headphones can also receive AAC.

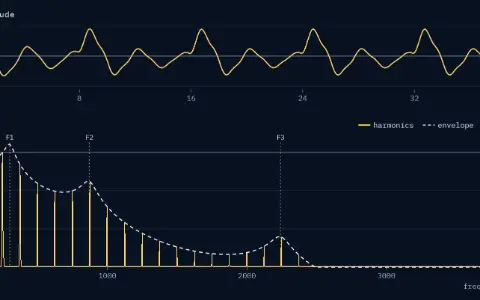

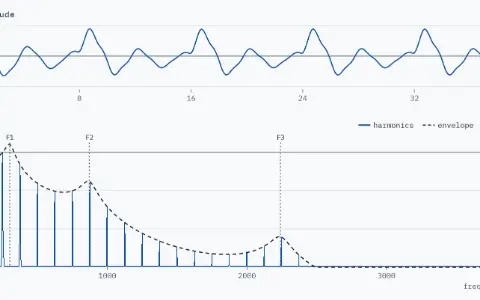

Speech codecs work differently: they model the voice that made the sound. The source–filter model of speech (30.1) takes that up.

For more, see Zwicker and Fastl, Psychoacoustics (3rd ed., 2007), chapters 4 and 6, J. D. Johnston, “Transform coding of audio signals using perceptual noise criteria” (IEEE J. Sel. Areas Commun., 1988), and Bosi and Goldberg, Introduction to Digital Audio Coding and Standards (2003), chapters 5 to 7.
